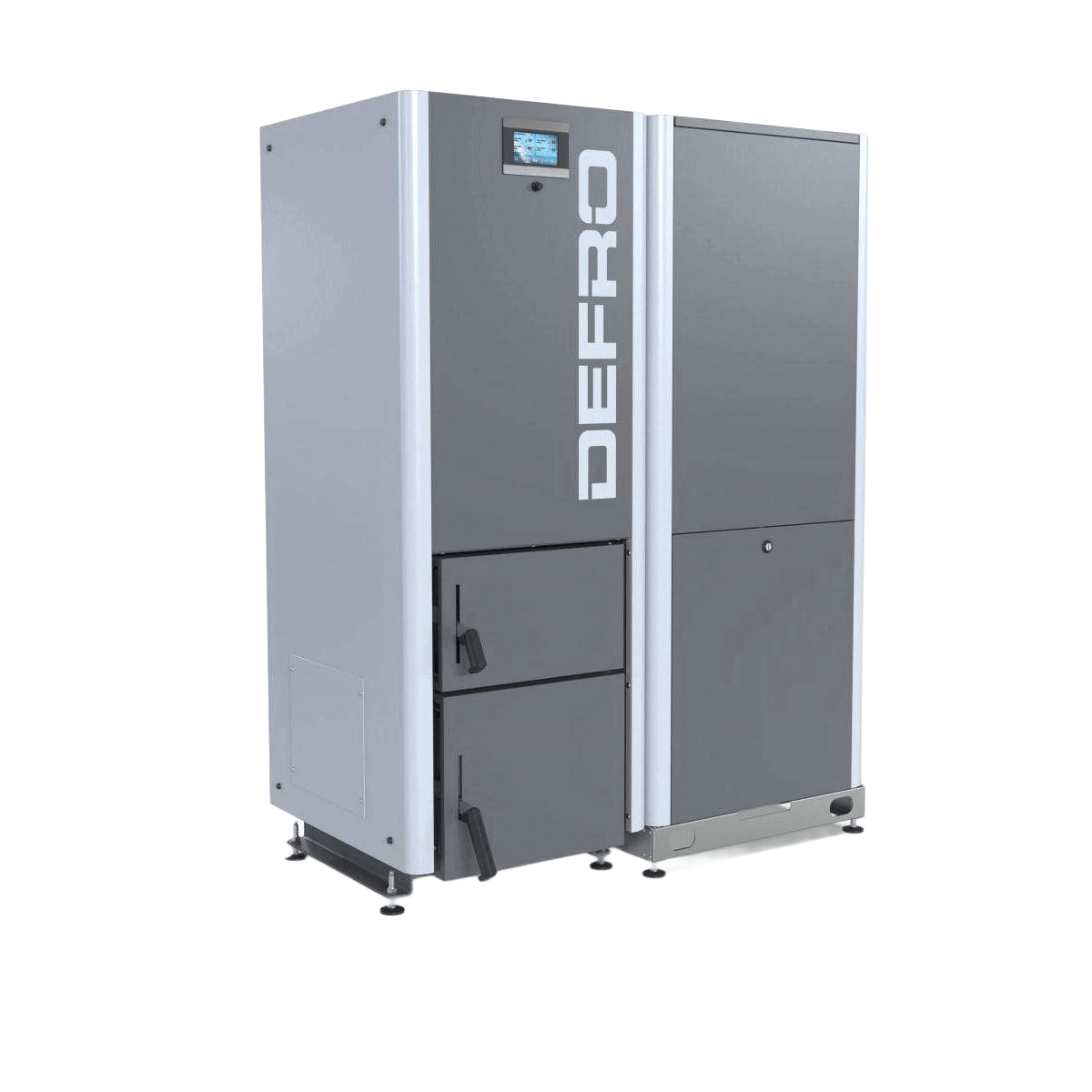

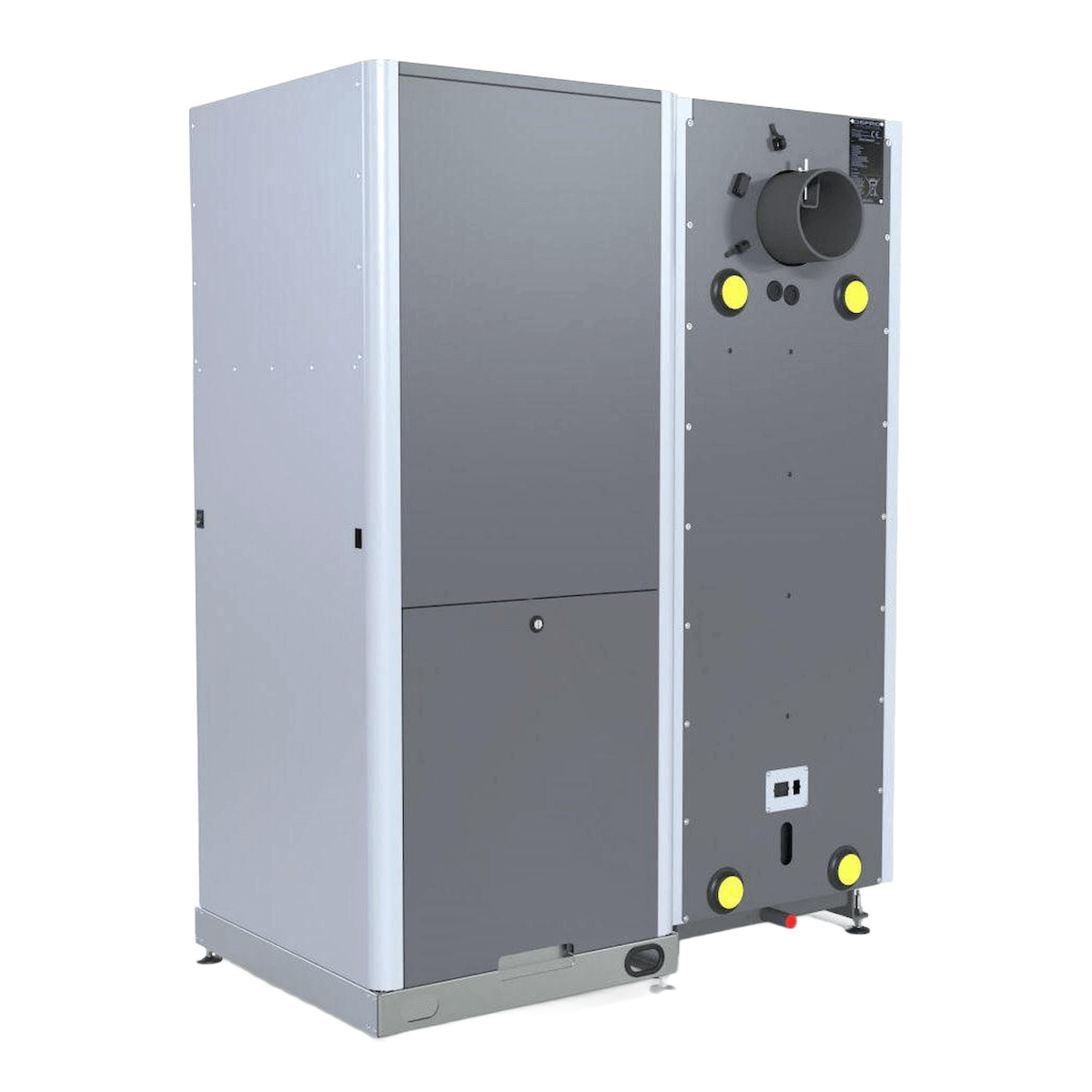

Defro gamma boiler with automatic heat exchanger cleaning

Defro Gamma - The innovative boiler for maximum efficiency

Due to the amendment to the Heating Act "Technology Open", the Pellet heating systems very popular again!

The Defro Gamma boiler sets new standards in pellet heating technology. With automatic cleaning functions, state-of-the-art controls, and an impressive efficiency of up to 94%, it's the ideal choice for anyone looking to combine efficiency and convenience in one device.

Automatic heat exchanger cleaning for maximum performance

A highlight of the Defro Gamma is the automatic heat exchanger cleaning system. Thanks to this innovative feature, the heat exchanger remains free of deposits, which not only increases efficiency but also extends the lifespan of the boiler. You benefit from low-maintenance operation and consistently high heating output.

The integrated tubular heat exchangers with swirlers further improve heat exchange and ensure optimal energy transfer. Together with the automatic cleaning function, this ensures consistently high efficiency.

Powerful pellet burner for every pellet quality

The Defro Gamma pellet burner is characterized by its adaptability. Even with poor pellet quality, the burner operates smoothly and reliably. This ensures trouble-free operation, regardless of the fuel quality.

Thanks to the modulation of the fan power through "ADAPTIVE CONTROL," the burner dynamically adapts to the respective operating conditions. This enables precise control of the combustion process, reduces consumption, and maximizes efficiency.

Intuitive operation with modern touchscreen control

The Defro Gamma boiler is controlled via the modern APC K SLIM touchscreen system. This intuitive operation makes configuring the device particularly easy for users. Whether it's controlling the heating circuit or setting specific operating modes, everything can be controlled clearly and conveniently.

The control system is also weather-compensated and allows for the management of a mixed heating circuit. An expansion module can be used for additional heating circuits, allowing the boiler to be flexibly adapted to individual needs.

Optionally expandable with internet module and room thermostat

The Defro Gamma boiler can be optionally equipped with an internet module and a room thermostat. This allows you to control and monitor heating operation remotely. This upgrade offers additional convenience and allows you to regulate energy consumption even more precisely.

This makes modern heating child's play – with maximum control and efficiency, no matter where you are.

High efficiency for economical heating

With an efficiency of 91 to 94%, the Defro Gamma is one of the most efficient boilers on the market. This high energy yield lowers heating costs and protects the environment through significantly reduced fuel consumption.

The combination of advanced technology, automated cleaning and modern controls makes the Defro Gamma an investment that pays off in the long term.

Conclusion: The Defro Gamma for clever heating solutions

The Defro Gamma is the perfect choice for anyone seeking maximum efficiency, ease of use, and flexibility. Its innovative features, such as automatic heat exchanger cleaning and touchscreen control, make it one of the most modern boilers on the market. Whether used for everyday use or for special requirements, the Defro Gamma always delivers top performance.

Nationwide commissioning and Assembly about customer service available on request!

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 30 kW

• Power range 8.9 - 30.1 kW

• Efficiency 92%

• Tensile requirement 18 Pa

• CO content 10.2%

• Required fuel: pellets

• Exhaust gas temperature 135 °C

• Exhaust gas mass flow 16 mg/s

• Height 1495 mm

• Width 1560 mm

• Depth 717 mm

• Flue pipe connection 178 mm

• Weight 543.0 kg

Scope of delivery

• Touchscreen APC K Slim,
• ADAPTIVE CONTROL control,
• Automatic heat exchanger cleaning,
• PID function,
• Adjustable feet,
• Automatic ignition,
• Pellet burner with automatic cleaning

Download

• Operating instructions
• Dimensions
• Product data sheet
• Certification
