3-way ESBE VTC422 for return and desired minimum temperature

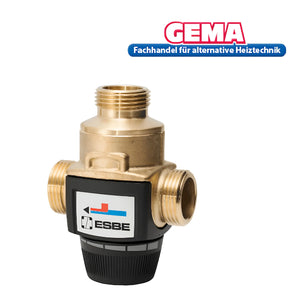

VTC 422 3-way mixing valve ESBE
The VTC 422 3-way mixing valve ESBE regulates the flow temperature and/or the return temperature increase in the heating circuit.
The use as Return flow increase It helps quickly reach and maintain the desired minimum temperature. This prevents the formation of soot and condensation and increases the efficiency and lifespan of the fireplace.
This is done by mixing hot flow water into the cold return flow.
This mixing is done variably using a mixer.
Features VTC 422
- DN25, Kvs4.5, G1", 50-70 degrees.
- (Return temperature increase) VTC400.
- PN10, T medium 0...100 degrees Celsius,
- Maximum pressure difference mixing 100
- kPa, divert 30 kPa,
- Flow coefficient Kv/Kv Min. 100,
- Material: DZR brass CW602N
- Dezincification-resistant media: Heating water, heating water with a glycol content of up to 50 Percent.
- adjustable 50-70 +/-3 degrees Celsius,
- Kvs 4.5 qm/h, connection external thread
Technical data
- Connection: 1" internal thread
- Kvs value: 10
- Torque (at nominal pressure): 3 NM
- Operating pressure: 1 MPa
- Closing pressure: 200 kPa
- Medium temperature: max. (continuous): +110 °C, max. (temporary): +130 °C, min.: -10 °C
- Max. differential pressure drop: Mixing 100 kPa, Distributing 200
- Pressure class: PN 10
- Conformity: PED 2014/68/EU, Article 4.3
- kPa Flow coefficient Kv/Kv min, A-AB: 100
- Material: Mixer body: Dezincification-resistant brass DZR Valve insert: Wear-resistant brass Shaft and bearing bush: PPS composite O-rings: EPDM
