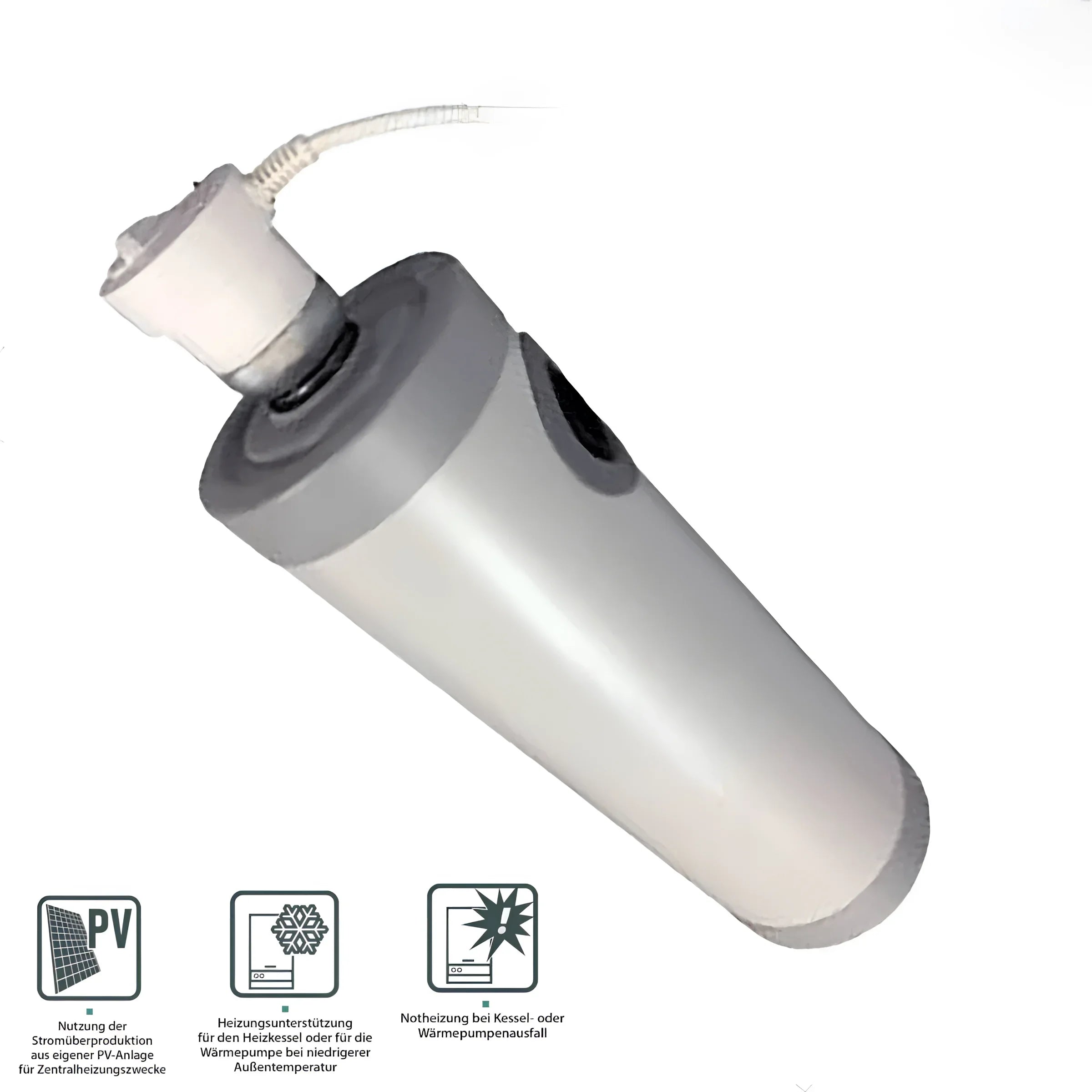

Drawer heater MDC 400 plus electric heating rod 6 kW
Complete package instantaneous water heater MDC 400 plus 6 kW heating cartridge – Efficient support for your heating system
Product overview
The complete package combines an innovative Afterheating module - instantaneous water heater and a powerful electric heating cartridge to optimally support your heating system. Thanks to their modern design and versatile application options, both components make a sustainable contribution to energy optimization in central heating systems.
The combination of the flexible Afterheating module - instantaneous water heater The MDC 400 and its 6 kW heating cartridge provide reliable heat, whether as a supplement to photovoltaics, heat pumps, or traditional boilers. This means both private households and small businesses benefit from an efficient and robust heating system.
Applications and advantages of the afterheating module
The Afterheating module - instantaneous water heater Converts excess electricity into heat, supporting existing heating systems even if the main boiler or heat pump fails. It's also ideal for heating weekend or holiday homes, ensuring continuous hot water production even under adverse conditions.
Flexible integration into various systems ensures reliable operation based on modern technology, resulting in lower operating costs and optimized energy utilization. This system enables the available energy in the heating system to be used as needed.
Technical characteristics of the MDC 400 after-heating module
The module is designed to be used in a variety of systems. With components such as a flow and return connection of 1 1/4" IG and a heating element connection of 1 1/2" IG meets the requirements of modern heating technology. The module achieves a maximum operating temperature of 90 °C and an operating pressure of up to 10 bar.
With competitive power variants – as a heating element in 3.0 kW, 4.5 kW, or 6.0 kW – the device can be optimally adapted to individual heat requirements. The compact inner diameter of 60 mm and the dimensions of 161 mm diameter and 600 mm length also allow for easy integration into existing systems.
Robust construction and high-quality materials
The interior of the module is constructed of robust raw steel, while the exterior is protected by a durable powder coating. The 50 mm thick polyurethane foam insulation ensures efficient heat storage and minimizes heat loss.
The durable outer shell made of gray plastic ensures a long service life even during continuous operation and reduces maintenance requirements, so you can rely on reliable heating support in the long term.
Electric heating cartridge 6 kW – Powerful heating solution
The 6 kW heating cartridge is an electric heating solution specially designed for domestic and drinking water storage tanks with a 1 1/2" connection. With an operating voltage of 400 V and an installation length of 520 mm, it delivers the required heat quickly and efficiently.
The heating cartridge is perfect for use as a main, emergency, or auxiliary heater. This makes it ideal not only for use with heat pumps, but also for quickly heating water storage tanks during cold winter months.
Function and safety of the heating cartridge
A special feature of the Heating cartridge is the integrated isolation, which ensures safe operation.The simple temperature control via a rotary knob allows precise control of the heat supply, while an LED display always shows the current operating status.
This user-friendly operation simplifies the installation and operation of the heating cartridge, allowing even less complex installations to benefit from optimal heat output.
Summary and conclusion
The combination of the Afterheating module - instantaneous water heater The MDC 400 and the 6 kW heating cartridge offer a flexible and efficient solution for modern heating systems. Both components impress with their robust construction, ease of use, and a wide range of possible applications – from supporting conventional boilers to optimally complementing heat pumps and photovoltaic systems.
Rely on this complete package to support your heating system with energy efficiency, reduce operating costs, and ensure comfortable warmth even in the colder months. An investment that impresses with both performance and safety.
Technical data
- Connection flow and return: 1 1/4" IG
- Connection for heating element: 1 1/2" IG
- Max. permissible operating temperature: 90 °C
- Max. permissible operating pressure: 10 bar
- Housing material: raw steel inside, powder-coated outside
- Housing insulation: 50 mm polyurethane foam
- Outer shell: plastic, color: gray
- Minimum flow: 6.0 kW/343 l/h
- Suitable heating elements MDC400 module: 3.0 kW | 4.5 kW | 6.0 kW (400V)
- Inner diameter of MDC module: 60 mm
- Dimensions MDC400 (diameter x length): 161 mm x 600 mm
Scope of delivery
- Afterheating module MDC 400 module
- Heating cartridge 6 kW
- Assembly and operating instructions
